If you are not using popup menus in your applications, you are depriving your users of a very good thing. They are easy to create and moderately easy to implement. In this article, I’ll walk you through several examples of the use of popups. Below is a list of topics that will be covered in this article.

Quick Start: If you’d rather just look at the commented code in the forms used for this article, here is a zipped copy of the sample forms and menus.

The Basics: A Form-based Popup Menu Creating the popup menu with the Popup Menu Designer Attaching the popup menu to a form Add a couple more menu choices Disable/enable or check/uncheck an item on the popup menu, on-the-fly Where do you put the menu-mod code? Slicker — An Object-Specific Popup Create the form and popup files Associate the popup with the grid Positioning the popup menu in relation to the mouse pointer Slickest —A Dynamic Object-Specific Popup Create dynamic menu code with the Designer, then modify it A sample form with a dynamic popup menu 2 in 1: A form-based popup and a grid-based popup in one form NewsGroup Tips for managing the placement of object-specific popup menus when the object is in one or more containers dBASE’s built-in popups Conclusion

The basics — create a form-based popup menu using the Popup Menu Designer, and connect it to a form
Top|Topic List

It’s easiest to throw together a popup menu using the Popup Menu Designer. Before you do so, you might want to make a new folder in which to store all the goodies that follow below.

To kick off the process of creating a popup menu, you have two choices from within dBASE: Either use File | New | Popup as shown below…

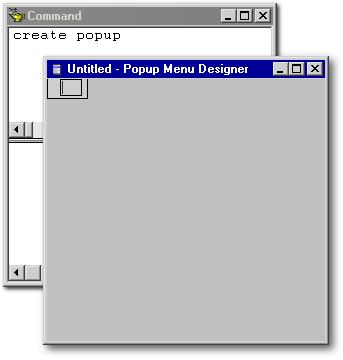

…or type create popup into the Command window and press the Enter key: you will then get the dBASE interface for creating a popup menu, which is just a blank popup menu:

Popup menus are different from pull-down menus — they lack the top-level menu (technically referred to as a “menu bar” and represented by the MENUBAR class in dBASE) which provides the user with a horizontal array of choices.

Instead, popups resemble just the pulled-down portion of a single pulldown menu. Actually, Windows considers any menu other than the MENUBAR to be a “popup”, but here I am differentiating between “pulldown” (beneath a menubar) and “popup” (shortcut or context) menus. Any popup menu, whether pulldown or shortcut, can employ sub-menus that branch off of the main choices.

Create a one-item menu:

Let’s keep things very simple here and begin by creating a popup menu that has only one item — we’ll use it to close the form. So, in the empty space shown in the above screenshot, type &Close to get what’s shown below. This will be the only choice on this popup menu. As usual, the ampersand (“&”) will cause the letter to its right to be underlined (“Close”) when the menu is displayed.

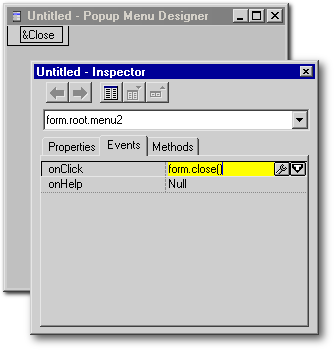

Then, as you would for a normal menu, open the Inspector if it isn’t open yet, and under its Events tab, in the slot for the onClick() event for this new menu item, get rid of the default null and type form.close() instead as shown in the Inspector slot below.

Then press the Enter key to have the Inspector fill in the rest of the codeblock details, as shown below.

That’s it. You’ve just created a simple popup that can close any form to which it is attached.

Talking to the form:

Speaking of forms, notice in the menu’s codeblock above that we referred to an event (form.close()) of the form. That’s because the popup menu will itself belong to the form in the same way an entryfield or checkbox belongs to the form, and consequently “knows” what the form is and can refer to it.

In the same way, the onClick() code of an item in a popup menu can call any built-in method or programmer-written function of the form, just as the code in a pull-down menu can:

	form.my_custom_copy_function()

and can also call any function normally invoked by a pushbutton or associated with any event code of any object:

	form.Delete_PB_onClick()

By duplicating the functions of other menus or of pushbuttons, the popup menu achieves its goal of useful redundancy. Actually, you can just copy/paste the codeblock from a pull-down menu’s onClick() slot straight into the onClick() slot of a popup menu item that you wish to perform the same function.

There is another way for the popup menu to refer to the form. For example,

	form.my_custom_copy_function( )

can be replaced by

	this.parent.parent.my_custom_copy_function( )

where this refers to the current menu object (the particular menu choice whose onClick() event we are coding), the 1st parent refers to the Popup menu object that contains this menu item, and the 2nd parent refers to the form, which contains the Popup menu object. It seems clear that form is easier to use than this.parent.parent because it requires less typing, so I will use it here.

Now use File | Save As… to save the menu as closeform.pop:

Then close the Menu designer.

Look at the menu code:

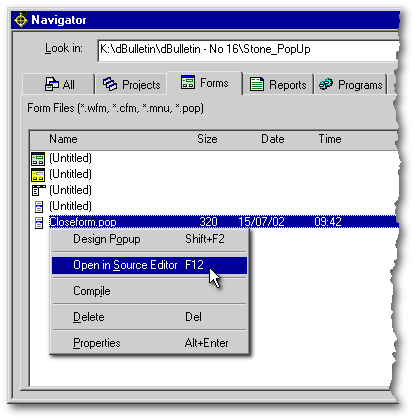

Before we attach this menu to a form, let’s take a look at the code dBASE generated to define this popup menu. To do this, right-click the Closeform.pop item in the Navigator as shown below…

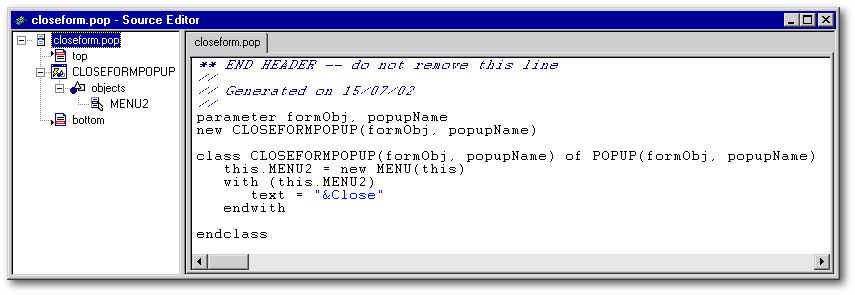

…and open the popup menu file in the Source Editor.

The code is delightfully short:

As you can see, the entire file is nothing more than

1. a parameter list: the closeformPOPUP subclass takes two parameters — the first(formObj) to provide the object reference of the form to which the popup will be attached, and the second (popupName) to provide a name for the popup menu itself. Both parameters will be passed to the actual POPUP class itself;

2. a line (beginning with new) that uses the parameters to create an instance of the popup; and

3. the class constructor code. In this case, since there is only one menu item (the one to close the form), there is only a single menu item which dBASE has arbitrarily named MENU2, instantiated from the MENU class to attach to the popup.

The properties of MENU2 are the two pieces of information you typed in: the codeblock of the onClick event ({;form.close()}), and the text of the menu item (Close).

Attaching the popup menu to a form
Top|Topic List

There are two steps to making your popup menu work on a form:

Step 1. Instantiate the menu into a property of the form. It really doesn’t matter when/where it’s done in the form’s code as long as it precedes step 2.

Step 2. Write a few lines of code associated with an event (customarily the onRightMouseDown event for a control, but it’s up to you to decide) that open the menu and that define where on the screen the menu should appear.

That’s it! How much simpler could it be?

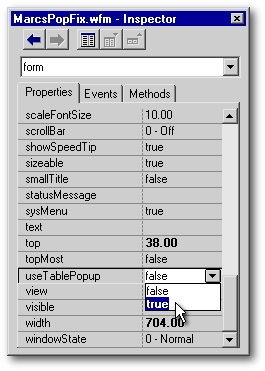

Well, actually, it can be one step simpler: we can eliminate Step 2 if we instantiate the popup menu into dBASE’s built-in form property called form.popupMenu instead of into a custom form property that we create for the purpose.

So, in our first example of attaching a popup to a form, we are going to use the built-in mechanism for this purpose that has been provided with the Form Class. It’s easy enough to do the more generic 2-Step attachment of a popup to a form, but we’ll start with the built-in one because it’s the one described in the OLH and, well, dataBased Intelligence Inc. (actually, Borland) made it for us to use and so we should at least give it a look. We’ll use the generic approach later. You should become familiar with both, right? Right.

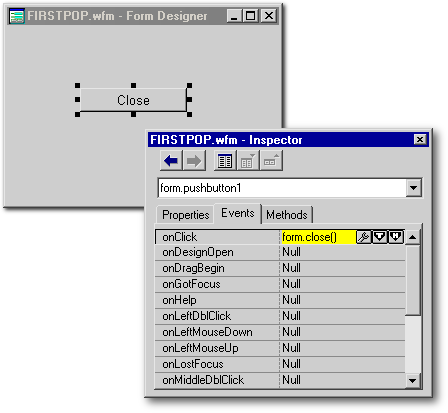

No matter how we attach a popup menu to a form, we need a form in order to do it since popups only happen in the context of a form. So, create a form called FIRSTPOP.WFM, and drop a pushbutton on it (we need SOMEthing on this very simple form), set its text property to Close, and use the Inspector to set its onClick() event to close the form just as you did for the popup menu:

Incidentally, this Close button and its code have no connection whatsoever to the popup (well, other than identical functions). We’re just sticking it in there because closing forms is what Close buttons do; and you should always provide another means of performing each of the actions available on a popup menu.

Now let’s attach the menu to the form. We’ll divide the one necessary Step (Step 1, above) into a few tiny sub-steps:

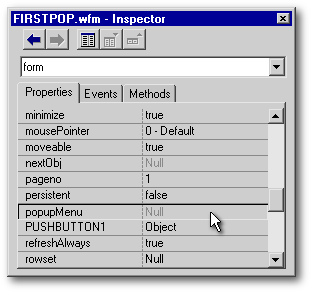

1. Click on the form so it is the current object in the Inspector, then click on the properties tab in the Inspector, then scroll down to the property called popupMenu:

Notice that it has a null value and is inaccessible! Well, that’s because we don’t attach a form’s popup menu in the same way we attach a regular pulldown menu to a form. Attaching a popup is a bit more involved, but only slightly so. When you attach popup menus in the future, you can skip this first tiny sub-step…

2. Click the Events tab in the Inspector, then find the form’s onOpen() event, and click it’s wrench-thing so that you can create some popup-related code for this event.

3. Type in (or copy/paste from here) the two new lines you see below in red:

	Function form_onOpen    set procedure to closeform.pop additive    this.popupMenu := new closeformpopup(this,"FirstPOPUP")    return

Then save the form. That’s all there is to it. Now a few explanatory comments:

Notice that the first line of code is to set procedure to the popup menu file so its class constructor code (which describes the popup menu’s particulars) will be available to the form. The second line of code instantiates the popup menu into the form’s built-in form.popupMenu property.

In the second line of code above, the word this refers to form; you could substitute the word “form” and the result would be the same.

Also in the second line of code, the name (2nd parameter) being specified for the popup menu is FirstPOPUP. This is an arbitrary choice. If you’d prefer to call it “MONGOOSE” or “ACHILLES”, go right ahead. But remember what you decided to name it because this name is a convenient (but not the only) way to refer to the menu in your code.

What is the purpose of the given popup name?

There’s a bit more to this than you might think. First, it provides dBASE with a name for a new custom property of the form which will hold the object reference to the popup menu. So, if the name you provide is FirstPOPUP, dBASE will create a new custom property of the form called form.FirstPOPUP, and that custom property then holds the object reference to the popup menu. OK so far?

Second, the form’s popupMenu property (form.popupMenu) will also hold the object reference. Hence, there will be 2 copies of the popup menu’s object reference: one in form.FirstPOPUP and the other in form.popupMenu. You can use either to ask the popup menu to do things such as opening, graying out or check-marking a menu item.

In effect, then, a popup menu that is instantiated into form.popupMenu appears to have 2 names: form.popupMenu or form.FirstPOPUP. However, if you specifically inquire about what’s in the name property of this popup, via either form.popupMenu.name or form.FirstPOPUP.name, dBASE will return FirstPOPUP. So its real name is the name you gave it. If this is a bit confusing, don’t worry about it — no need to understand it in order to use the popup menu.

And what’s special about form.popupMenu?

Regardless of any other popup menus that may have been instantiated into custom properties of the form, it is the popup menu whose object reference is in form.popupMenu which will automatically be invoked by an onRightMouseDown() event anywhere on the form (including over any form objects such as grids, so beware!). And yes, you may have as many popups instantiated as you wish, but only one (at a time) can have its object reference stored in form.popupMenu.

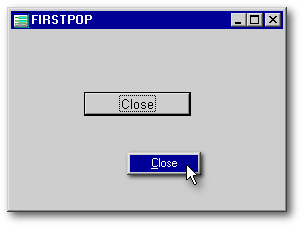

Now run the form, and right-click anywhere on it:

The popup menu should come up as shown above… well, it barely looks like a menu since it’s composed of only 1 item. Be sure that choosing “Close” closes the form. If it doesn’t, go back and fix the onClick() codeblock in the menu file!

Add a couple more menu choices
Top|Topic List

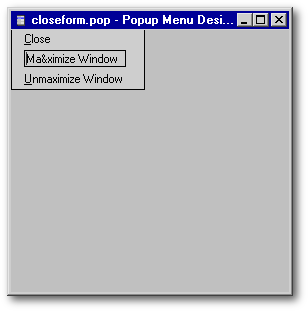

Just for fun (and for practice, and for the next functional example), re-open the closeform.pop file in the Popup Menu Designer and add these two items:

In the Inspector’s onClick() slot for “Maximize Window”, type (or paste) the following:

	form.windowstate = 2

and press Enter. Then in the Inspector’sonClick() slot for “Minimize Window”, type (or paste) the following:

	form.windowstate = 0

and press Enter.

Then save and close (Ctrl-w) the popup menu file, right-click the menu file in the Navigator, then compile it [this seems to get around a bug that occasionally prevents your menu changes from being “seen” by dBASE], then run the form again.

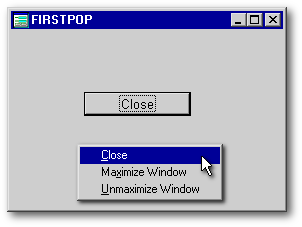

The revised popup menu looks like this…

…and should behave as you have asked. If it doesn’t, get in there and fix the onClick() code!

Before moving on to fancier popup menus, let’s look at a few manipulations that can be directed at any popup.

Disable/enable or check/uncheck an item on the popup menu, on-the-fly
Top|Topic List

Since the form’s popup menu (the one using the built-in form.popupMenu property) usually remains instantiated while the form is open, you have access to the properties of its menu items. To be able to alter the properties of the menu items, you’ll have to know how to refer to them. Perhaps you recall in the popup menu constructor code that the menu items are numbered (e.g., MENU2, MENU157) so that each menu item will have a unique name. The unique name of each menu item provides the means to either disable/enable it or to check/uncheck it in the popup menu.

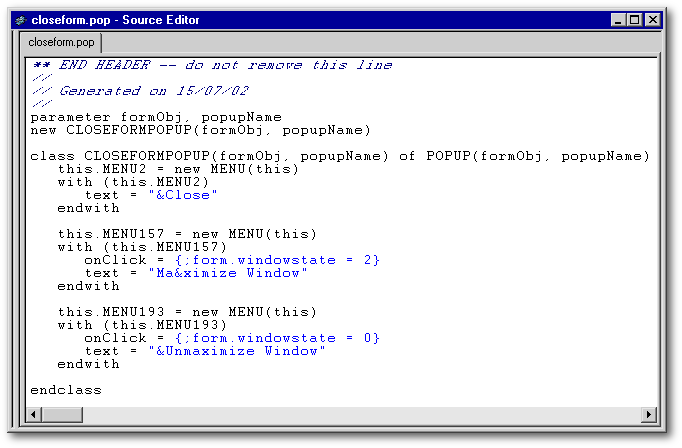

Here’s the code that dBASE streamed out for my popup menu (yours may have different MENU numbers! If so, you may wish to change them so they match these):

There are two straight-forward ways for the form to get access to this popup menu’s properties. The first is through the form’s PopupMenu property — it now holds one of the copies of the object reference to the popup menu.

So, it’s easy: if you want to disable the top (Close) menu choice, one way to do it is like this:

	form.popupmenu.menu2.enabled = false

The other way is to refer to the popup menu by the name you gave it when it was instantiated in the form’s onOpen() code, which in the above case was FirstPOPUP:

	form.FirstPOPUP.menu2.enabled = false

dBASE doesn’t care which way you do it. My personal preference is to use the given name just to remind me which menu I’m using in case there is more than one popup menu instantiated.

To re-enable the menu item, set the enabled property back to true:

	form.FirstPopup.menu2.enabled = true

If you wish to add a checkmark to the second menu choice (Maximize Window), do it like this:

	form.FirstPopup.menu157.checked = true

To uncheck it, set the property back to false:

	form.FirstPopup.menu157.checked = false

Pretty simple, right? For that matter, you can change the other properties as well, such as the text of the menu item, or even the codeblock of the menu item so its function is changed:

	form.FirstPopup.menu157.text = "All new text!" form.FirstPopup.menu157.onClick = {;msgbox("Brand new command!","I have been profoundly altered...",16)}

Where do you put the menu-modification code?
Top|Topic List

The above code for modifying the menu can be placed anywhere that has access to the form to which the popup menu is attached, including “child” forms that have a communication channel back to the “parent” form via a form.oParent (or similar) custom property. The code can also be placed in the menu file itself; examples below.

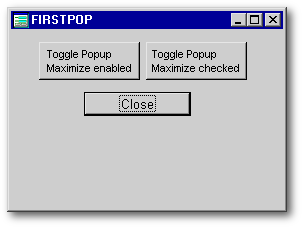

As an unrealistic but simple example, add two more buttons to the form, as shown below:

Use the Inspector to add, for the left-hand button, this line of code in its onClick() event slot:

	form.FirstPopup.menu157.enabled = not form.FirstPopup.menu157.enabled

This code will change the enabled property to the opposite of its current setting; in effect, a toggle. Then use the Inspector to add, for the right-hand button, a similar line of code in its onClick() event slot:

	form.FirstPopup.menu157.checked = not form.FirstPopup.menu157.checked

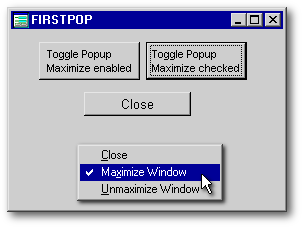

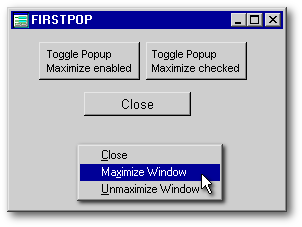

Then run the form and try the popup menu. It should look as it did before:

but now release the menu and click the right-hand button to toggle the Checked property, and try the menu again:

If you toggle the Enabled button, the “Maximize” menu item should be grayed-out, and should not work until you toggle it back “on” again by pressing the button again.

Place the menu modification code in the menu file itself

The above is not a particularly good example of when to use checkmarks in a popup menu — a more appropriate use would be a list of indexes for a table, and the current index would have a checkmark, as shown below:

Here, the code to change the menu items is in the menu code rather than in the form’s code. The onClick() codeblock for one of the menu items is shown below in red. It contains three commands separated by semicolons. Each menu item’s onClick() would contain a codeblock differing only in the indexname.

	class INDEXPOPPOPUP(formObj, popupName) of POPUP(formObj, popupName)    this.MENU50 = new MENU(this)    with (this.MENU50)       onClick = {;this.parent.deCheck();this.checked = true; form.rowset.indexname="SOCSECNO"}       text = "Sort by SocSec number"    endwith

The codeblock first calls a deCheck() function (included in the menu file, after the menu constructor code but before the ENDCLASS) that sets false the checked property of each menu item:

	Function deCheck  // this is a function located in the popup menu file rather than in the form file    // set all checked props to false    this.menu2.checked   = false    this.menu337.checked = false    this.menu50.checked  = false    this.menu152.checked = false    return

The codeblock then sets its menu item’s own checked property to true, and finally sets the indexname of the form’s rowset as appropriate.

Use the popup menu’s onInitMenu() event to alter popup attributes

Here is one additional approach to the placement of code that sets attributes of a popup menu. The example will be an improvement of the Sorting example above, since it is likely that an application would allow the user to choose an index by some means other than the popup, hence the popup will need to be updated to reflect this change the next time it is opened. This does complicate things a bit, as the two ways to set the index need to remain synchronized.

One way to do this is to exploit the popup menu’s onInitMenu() event. This event fires just before the popup menu opens, so it is an ideal time to alter a menu’s appearance.

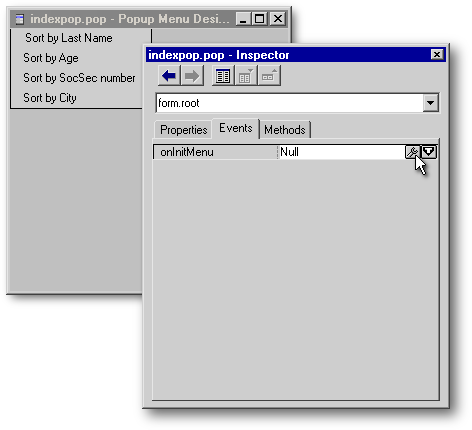

In order to write code for the onInitMenu() event, we have to first load the popup file into the Popup Menu Designer, then open the Inspector and do a little work to get the Inspector to show us the popup object rather than the default first menu object. Scroll to the parent property and open the Object…

…which will take us to the “root” (the Popup object itself) where we can click the wrench-thing next to the Popup’s onInitMenu() event…

…and write a function to manage the appearance of the popup just before it opens each time. The menu item which corresponds to the rowset’s indexname has its checked property set to true:

Function ROOT_onInitMenu    // set menu item "checked" property to either true or false    // according to current indexname    this.menu2.checked   = iif(form.rowset.indexname = "LastName", true, false)    this.menu337.checked = iif(form.rowset.indexname = "Age",      true, false)     this.menu50.checked  = iif(form.rowset.indexname = "SocSecNo", true, false)     this.menu152.checked = iif(form.rowset.indexname = "City",     true, false)    return

Next, a codeblock is written for the onClick() event of each menu item in the popup. Each codeblock uses the API function called SendMessage() to programatically “click” the appropriate radiobutton on the form to set the index desired by the user. Below is the constructor code for the popup subclass itself and for the first two of the four menu items:

class INDEXPOP2POPUP(formObj, popupName) of POPUP(formObj, popupName) with (this)    onInitMenu = class::ROOT_ONINITMENU endwith    this.MENU2 = new MENU(this)    with (this.MENU2)       onClick = {;sendmessage(form.lastname_rb.hwnd,0x00F5,0,0)}       text = "Sort by Last Name"    endwith    this.MENU337 = new MENU(this)    with (this.MENU337)       onClick = {;sendmessage(form.age_rb.hwnd,0x00F5,0,0)}       text = "Sort by Age"    endwith

	The syntax for the SendMessage() function, e.g., sendmessage(form.lastname_rb.hwnd,0x00F5,0,0) requires 4 parameters: the hWnd of the button being “clicked”; a number (the value of the BM_CLICK constant) that specifies a “programmatic click” which is 00F5 in hexadecimal or 245 in decimal (either can be used in this function); and two unused parameters that must each be set to zero. The SendMessage() “programmatic click” will work for both radiobuttons and checkboxes, but will not work for pushbuttons. Marc Van den Berghen, in addition to providing the inspiration for the “programmatic click” approach used here, has kindly provided the analogous code for pushbuttons in case you ever need to programmatically “push” one:   Function Click_PB_Programmatically    // sends Windows a message with the value of the wm_lbuttondown constant    sendmessage(form.pushbutton1.hwnd,513,0,0)    // sends Windows a message with the value of the wm_lbuttonup constant     sendmessage(form.pushbutton1.hwnd,514,0,0)    return

Back in the form

The onOpen() for the form is shown below, and it first “externs” (i.e., makes available for use in dBASE) the API function called SendMessage() mentioned above that will be used by the popup menu to “click” the form’s radiobuttons. The onOpen() also sets up the popup menu, and then uses SendMessage() to “click” the SocSecNo radiobutton so that the rowset’s indexname is set to the SocSecNo index:

Function form_onOpen    // extern the API function to talk to the radiobuttons    if type('SendMessage') # 'FP'       extern clong SendMessage(chandle, cuint, clong, clong) user32 from "SendMessageA"    endif    // set up the popup menu    set proc to indexpop2.pop addi    this.popupMenu = new indexpop2POPUP(this,"indexpop2")    // programmatically click the Social Security No radiobutton    // to set the SocSecNo index    sendmessage(form.socsecno_rb.hwnd,0x00F5,0,0)    return

Each of the four radiobuttons’ onLeftMouseDown() event has code (as a codeblock in the constructor code for each radiobutton) that sets the indexname associated with that radiobutton and moves the rowset to the first row:

	this.LASTNAME_RB = new RADIOBUTTON(this) with (this.LASTNAME_RB)    onLeftMouseDown = {;form.rowset.indexname = "LastName";form.rowset.first()}    height = 16    left = 12    top = 138    width = 110    text = "Last Name"    fontSize = 8    group = true    value = true  endwith

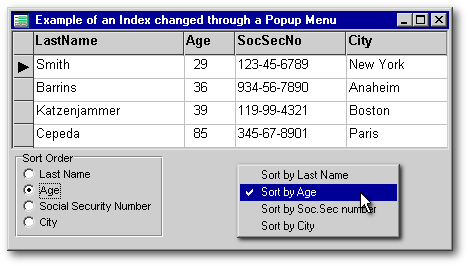

Here’s what the form and popup look like:

When an index is chosen via the popup, the code in the popup menu “clicks” the appropriate radiobutton. If an index is changed via a radiobutton, the popup menu recognizes the change in its onInitMenu event code, and updates itself. This form (indexpop2.wfm) and its table, index, and popup menu are included with the other files for this article.

Switch back and forth between 2 or more form-based popups
Top|Topic List

If you want two or more form-based popups, you’ll need to switch among them. To do this, use the built-in popupMenu property of the Form Class and assigning a different popup menu to the form.popupmenu property:

	form.popupMenu := form.MyFormPopup2

Before the above can be done, though, form.MyFormPop2 has to have been instantiated. You can instantiate any number of popups, each into its own custom property of the form where it will be “held” until your code assigns it to form.popupMenu:

// set procedure to the popup menu filename set proc to MyFormPop2.pop additive // instantiate the popup into a custom property of the form (form.MyFormPopup2) // with the name "MFP2" and notice that the name of the form property is  // different from the name of the popup menu. form.MyFormPopup2 = new MyFormPop2POPUP(form,"MFP2") // analogous comments here... set proc to MyFormPop3.pop additive form.MyFormPopup3 = new MyFormPop3POPUP(form,"MFP3") etc...

You can do the above instantiations in the form’s onOpen() event or in any other function or event code that seems appropriate, and you can assign any of the menus to form.popupMenu as appropriate.

The above code is only slightly different from the procedure we followed for our FirstPOPUP menu. (Here’s its instantiation code: this.popupMenu := new closeformpopup(this,"FirstPOPUP")) We did not instantiate that popup into a custom property of the form. Instead, we instantiated it directly into the form.popupMenu property — a built-in property (although dBASE, as you recall, also stored a copy of the object reference in a custom form property called form.FirstPOPUP). In this second example, we are creating our own custom form property and assigning the alternate menu’s object reference to that property.

The hodge-podge of popup-related names!

Have you noticed that the names assigned to each file, subclass, and form.property can get pretty confusing? For the sake of organization (and perhaps sanity), let’s list the various names associated with the first example above (MyFormPop2.pop) :

• Popup file name: MyFormPop2.pop [you choose this name when you first save the popup menu file itself]
• Name of subclass within this file: MyFormPop2POPUP [this is the name “streamed-out” by dBASE: the word “POPUP” is added to the filename — you can change this subclass name in the .pop code if you wish]
• Name of custom property of form to hold the object reference of the new menu object: MyFormPopup2 [you choose this property name in the instantiation line]
• Name assigned to the popup menu, specified in second parameter of instantiation: MFP2 [you choose this name as well]

The icing on the convoluted cake: when you assign one of your alternate popup menus to the form’s popupMenu property by using either of the menu’s references

	form.popupMenu := form.MyFormPopup2

or

	form.popupMenu := form.MFP2

you then have a third copy of the object reference for that popup in the form.popupMenu property!

OK, enough time/verbiage on the built-in popupMenu function… it’s very nice, but there’s much more that can be done. So, on to the more generic approach.

Slicker — an Object-Specific Popup
Top|Topic List

If a form allows many actions by the user, it will usually include a few controls such as grids, combo/listbox, editor, etc. Under these circumstances, it’s a good idea to make several popups, each designed for and associated with a specific object on the form. This type of popup menu is particularly useful for a grid since a grid usually displays data that can be manipulated in a variety of ways. So let’s create an example of a grid with a right-click popup.

You already know most of the popup moves from the preceding examples — the main difference here is the way in which we will instantiate the popup. Furthermore, because we will use the “generic” approach to managing this popup, we’ll need to include our Step 2. (described in previous section), which positions and opens the popup menu in the grid’s onRightMouseDown() event code.

Create the form and popup files
Top|Topic List

First, we need a form that is a little more complex — we have to justify the object-specific popup. So, type

	modi comm OSpopup.wfm

into the Command Window and press Enter, then paste the following code into the empty Source Editor and save it. [both the form and the popup file are provided if you would prefer to use them pre-created]

if not file("maintbl.dbf")    CREATE TABLE MAINTBL (;       SALESID AUTOINC,;       CUSTOMERID CHAR(10);       )    use maintbl    select maintbl    generate 10    use endif ** END HEADER -- do not remove this line // // Generated on 06/07/2002 // parameter bModal local f f = new OSpopForm() if (bModal)    f.mdi = false  // ensure not MDI    f.readModal() else    f.open() endif class OSpopForm of FORM with (this)    height = 13.6364    left = 23.1429    top = 1    width = 36.2857    text = "" endwith this.MAINTBL1 = new QUERY() this.MAINTBL1.parent = this with (this.MAINTBL1)    left = 32    top = 11.3182    sql = 'select * from "MAINTBL.DBF"'    active = true endwith this.SALESGRID = new GRID(this) with (this.SALESGRID)    dataLink = form.maintbl1.rowset    columns["COLUMN1"] = new GRIDCOLUMN(form.SALESGRID)    columns["COLUMN1"].dataLink = form.maintbl1.rowset.fields["salesid"]    columns["COLUMN1"].editorType = 3 // SpinBox    columns["COLUMN1"].width = 9    columns["COLUMN2"] = new GRIDCOLUMN(form.SALESGRID)    columns["COLUMN2"].dataLink = form.maintbl1.rowset.fields["customerid"]    columns["COLUMN2"].editorType = 1 // EntryField    columns["COLUMN2"].width = 14.2857    with (columns["COLUMN1"].editorControl)       rangeMax = 100       rangeMin = 1    endwith    with (columns["COLUMN1"].headingControl)       value = "SALESID"    endwith    with (columns["COLUMN2"].headingControl)       value = "CUSTOMERID"    endwith    bgColor = "white"    height = 7.5455    left = 3.2857    top = 1    width = 29.4286 endwith this.ENTRYFIELD1 = new ENTRYFIELD(this) with (this.ENTRYFIELD1)    dataLink = form.maintbl1.rowset.fields["customerid"]    height = 1.1364    left = 3.7143    top = 9.5    width = 28.7143 endwith this.PUSHBUTTON1 = new PUSHBUTTON(this) with (this.PUSHBUTTON1)    onClick = {;form.rowset.save()}    height = 1    left = 5.1429    top = 11.6818    width = 12.2857    text = "Save"    fontSize = 8 endwith this.PUSHBUTTON2 = new PUSHBUTTON(this) with (this.PUSHBUTTON2)    onClick = {;form.rowset.abandon()}    height = 1    left = 18.2857    top = 11.6818    width = 12.2857    text = "Cancel"    fontSize = 8 endwith this.rowset = this.maintbl1.rowset endclass

The above is a form that contains a grid to display some randomly generated data and an entryfield to allow row info to be edited/added. We’ll associate a popup menu with the grid.

Now save the following popup menu code to a file called OSgrid.pop:

** END HEADER -- do not remove this line // // Generated on 06/07/2002 // parameter formObj, popupName new OSGRIDPOPUP(formObj, popupName) class OSGRIDPOPUP(formObj, popupName) of POPUP(formObj, popupName) this.MENU24 = new MENU(this) with (this.MENU24)    onClick = {;form.rowset.beginAppend();form.entryfield1.setfocus}    text = "&Add a record" endwith this.MENU293 = new MENU(this) with (this.MENU293)    text = ""    separator = true endwith this.MENU188 = new MENU(this) with (this.MENU188)    onClick = {;msgbox("Now clicking column #" + form.salesgrid.currentcolumn,"Column info...",64)}    text = "&Which grid column am I clicking?" endwith this.MENU509 = new MENU(this) with (this.MENU509)    text = ""    separator = true endwith this.MENU387 = new MENU(this) with (this.MENU387)    onClick = {;if form.salesgrid.bgcolor="white";                   form.salesgrid.bgcolor="yellow";                else;                   form.salesgrid.bgcolor="white";                endif}    text = "Change grid &color" endwith this.MENU98 = new MENU(this) with (this.MENU98)    text = ""    separator = true endwith this.MENU117 = new MENU(this) with (this.MENU117)    onClick = {;if msgbox("Proceed with deletion?","Caution--",20) = 6;                   form.rowset.delete();                endif}    text = "&Delete Current record" endwith endclass

You now have a form with a grid and a pop-up menu for the grid, but the grid hasn’t yet been introduced to the popup! So let’s do that.

Associate the popup with the grid
Top|Topic List

I am using the word “associate” here rather than the word “attach” because a popup is actually attached to (or is a child of) the form. It will be “associated” with the grid only in the sense that we’ll use two grid events to manage the popup.

The grid’s onOpen() event: The first of these two events is the grid’s onOpen() event. The reason we’ll use this event to instantiate the popup menu code is just to remind ourselves that it’s a grid-related popup. This is an arbitrary decision, though — the popup could just as well be instantiated in the form’s onOpen() or in the onOpen() of any other object associated with the form. All popup menus belong to the form rather than to any objects on the form, so there is no connection, per se, to the grid itself.

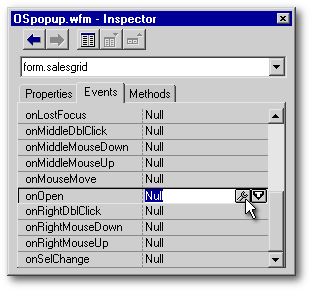

Open the OSpopup.wfm form in the Form Designer, then use the Inspector…

…to create (or paste from here) the following lines in red into the grid’s onOpen() event code:

	Function SALESGRID_onOpen    if not type("form.OS_pop") = "O"       do OSgrid.pop with form,"OS_pop"  // instantiate popup       form.OS_pop.alignment = 0         // center menu on pointer arrow    endif     return

	As you can see above, the entire chunk of code is encased within an if/endif. This is a necessary precaution if the form will be closed but not released and then re-opened. Why? Because each time the form is re-opened, so is the grid, and thus the grid’s onOpen( ) event will fire again. So, in case the latter occurs, we need a test to see if the menu is already instantiated. If it is, we bypass the instantiation step, because the same menu name (OS_pop) can only be used once as a property name, and we’re already using it. We’d generate an error: Cannot have more than one form object with the same name: OS_POP

The next line in the SALESGRID_onOpen() function “does” the popup menu file in order to instantiate it. Remember those first two lines of code in the popup menu file — the parameter line and then the instantiation line? The parameters are specified here following with. The first parameter, form, specifies that the menu be attached to the form, and OS_pop is the name being given to this popup menu.

The third line of the function uses the alignment property of the popup menu itself to help specify that the menu be centered on the “click point”… which is the tip of the mouse pointer. More specification (and sometimes much more) is needed to accomplish this, however, as described below.

The grid’s onRightMouseDown( ) event

The second grid event that needs coding is the grid’s onRightMouseDown(), and of course it will fire every time the user right-clicks the grid. We will exploit this event to open the menu and to precisely position the menu on the screen in relation to the mouse pointer.

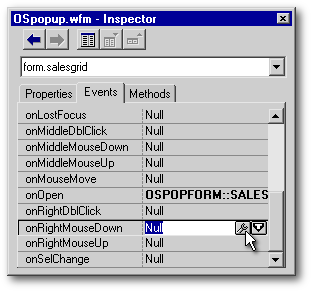

So, use the Inspector…

…to create the following code in the grid’s onRightMouseDown() event code:

	Function SALESGRID_onRightMouseDown(flags, col, row)    form.OS_pop.left = this.left + col  // set popup coordinates relative to the grid    form.OS_pop.top = this.top + row    form.OS_pop.Open()     return

Notice that this code first sets the left and top coordinates of the popup menu relative to the grid: this.left and this.top together specify the grid’s upper-left corner. These positional data are then added to the mouse pointer’s row and col data (its distances from the grid’s top and left, respectively), and complete the information necessary to orient the popup menu correctly in relation to the tip of the mouse pointer. Then the popup menu itself is opened.

Keep in mind that the popup was instantiated when the grid was first opened, so the popup has been biding its time, waiting to be opened. Just like a form that has been instantiated but not yet opened, the popup menu’s positional properties are available for manipulation.

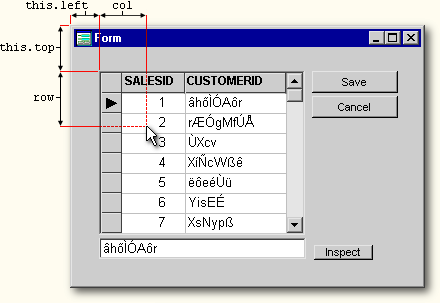

	What are the col and row parameters in SALESGRID_onRightMouseDown(flags, col, row)? Below is a screenshot of the form, the grid within it, and the mouse pointer within the grid. The first thing to be aware of is that the grid and the form have separate coordinate systems. Since the mouse pointer is positioned over the grid when the right-click occurs, the mouse pointer’s position will be specified by col and row using the grid’s coordinate system: the col value is the horizontal numeric “offset” (distance) of the tip of the mouse pointer from the grid’s left edge, which is zero. The row value is the vertical numeric offset of the tip of the mouse pointer from the grid’s top edge, which is zero. But the popup menu doesn’t know about the grid and needs to have its position specified in terms of the form. Hence, we also need this.left, which is the numeric offset of the left edge of the grid from the left edge of the form, and this.top, which is the numeric offset of the top edge of the grid from the top edge of the form. Since we are trying to position the popup menu in relation to the mouse pointer, we have to set the popup menu’s coordinates to be the sum of the positions of both the grid and the mouse pointer within it. Hence we have to add the grid’s form-related left offset (this.left) to the pointer’s grid-related left offset (col), i.e., this.left + col, and add the grid’s form-related top offset (this.top) to the pointer’s grid-related top offset (row), i.e., this.top + row These two sums will then be used (in conjunction with the menu’s alignment property, discussed below) to assign the position of the popup menu.

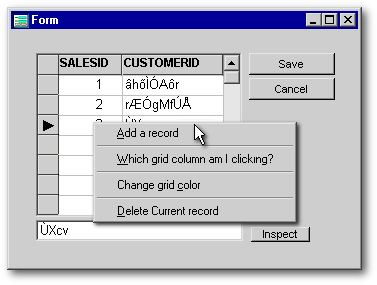

Save the form, run it, and try out the popup. If you right-click and hold the mouse button down, it should look something like the following image and the various choices should do the things they claim they’ll do.

Notice that when the menu opens, the tip of the mouse pointer is positioned at the middle of the upper edge of the menu. This is specified by setting the alignment property of the menu to 0 (zero). But this is not quite as slick as having the menu appear to emerge from one of its own corners, leaving the pointer at a corner of the menu. Here’s how you do the corner trick:

If you want the menu to appear to emerge from the mouse pointer toward the right…

…leaving the tip of the pointer at the upper left corner of the menu, use this setting:

	form.OS_pop.alignment = 1

If you want the menu to appear to emerge from the mouse pointer toward the left,

leaving the tip of the pointer at the upper right corner of the menu, use this setting:

	form.OS_pop.alignment = 2

The original setting was

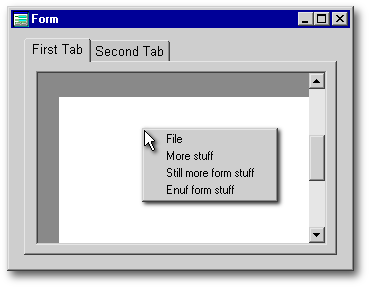

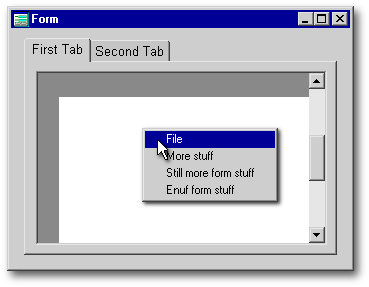

	form.OS_pop.alignment = 0

which leaves the mouse pointer in the middle of the upper edge of the popup menu.

Done… That’s how you can associate a popup menu with a grid. The real “association” here is, of course, the opening of the menu in the grid’s onRightMouseDown(). You could, by using the same few lines of code, open this popup in any other object’s onRightMouseDown() event code, but that would be pointless since the menu has mostly grid-specific commands on it.

Slickest — a Dynamic Object-Specific Popup
Top|Topic List

There may be circumstances in which you’ll need to change, on-the-fly, the choices/actions of a popup menu. Let’s call it a “dynamic” popup. It’s pretty easy to create now that you’re familiar (I hope!) with basic popup control and behavior.

We’ll create our dynamic popup from scratch. Well, not completely from scratch — we’ll use the Popup Menu Designer to generate the constructor code, but then we’ll throw away the subclass bits and have a listbox’s onRightMouseDown() event code do two things: create the menu object directly from the POPUP class (no subclassing!) with varying menu items depending on our needs, and then open the popup.

Create dynamic menu code with the Designer, then modify it by hand
Top|Topic List

In the left-hand column below is shown a very simple (2 items) popup menu that I created in the Popup Menu Designer. I copied all the code from the original .pop file (which we won’t otherwise be using) to the editor to modify it. In grey is the code which will be deleted. In burgundy, the code which will be changed.

In the right-hand column is the modified version of the menu code. The already-edited code is in burgundy, and there is new code in bold red. The code in the right-hand column will become part of a listbox’s onRightMouseDown() event code.

	** END HEADER -- do not remove this line // // Generated on 06/08/2002 // parameter formObj, popupName new quickpopPOPUP(formObj, popupName) class quickpopPOPUP(formObj, popupName) of POPUP(formObj, popupName)		// instantiate new popup menu object form.popper = new Popup(form) // create menu items
	this.MENU2 = new MENU(this) with (this.MENU2)    onClick = {;msgbox("Process that is always available")}    text = "Do a basic process that always has to be on the menu" endwith		form.popper.MENU2 = new MENU(form.popper) with (form.popper.MENU2)    onClick = {;msgbox("Process that is always available")}    text = "Do a basic process that always has to be on the menu" endwith
	this.MENU16 = new MENU(this) with (this.MENU16) onClick = {;msgbox("Another process that is always available")} text = "Do another basic process that always has to be on the menu" endwith endclass		form.popper.MENU16 = new MENU(form.popper) with (form.popper.MENU16)    onClick = {;msgbox("Another process that is always available")}    text = "Do another basic process that always has to be on the menu" endwith

How has the code been changed? First, the original instantiation code of the subclass (quickpopPOPUP) has been deleted entirely. No subclassing. Instead, we directly instantiate a popup menu object from the POPUP class itself into a custom property of the form: form.popper = new Popup(this)

Then, as you can see by comparing the two columns above, the only change to the popup menu constructor code in the left-hand column is the replacement of each this (which refers to the would-have-been-instantiated object called quickpopPOPUP) with the new property to hold its object reference, form.popper. The new popup menu code will have some extra code tacked onto it:

1. A series of If/Endif’s or a Do Case structure to decide which of various additional Menu objects should be attached to the popup menu object according to specified conditions. This is very simple to do, as shown in the single example below:

	if form.ckbx1.value  // in this case, the condition refers to whether a checkbox's value is true    quick.popper.MENU3 = new MENU(quick.popper)  // instantiate a new menu item    with (quick.popper.MENU3)  // assign its condition-specific properties       text = "Do something related to checkbox 1"       onClick = {;msgbox("Process that involves first checkbox")}    endwith endif

2. At the end, the usual lines of code for positioning the menu relative to the pointer:

	quick.popper.alignment = 1 quick.popper.left = this.left + col quick.popper.top = this.top + row  quick.popper.Open()

What about the Cannot have more than one form object with the same name error that occurs with re-instantiation of a popup menu? It is the nature of popups that they are opened repeatedly, and here, each time the user right-clicks the listbox, the menu is re-instantiated. So, recalling our previous concern with avoiding duplicate instantiations of a popup (and our If/Endif solution to it), are we not going to have that problem here?

Fortunately, we won’t, and the reason is this: we are not specifying a name for the popup. Although the POPUP class can receive both a form object and a name as parameters, we are only supplying the first parameter (form) , and we are specifically not supplying a name. If we instantiated it with a name (form.popper = new Popup(form,"DaPopper")), we’d get the above error on the second instantiation.

Multiple instantiations of an object into the same custom form property are not a problem, as we are not asking for a new object by the same name. Each instantiation merely replaces the object reference of the previous menu in the form property with a new object reference. This is analogous to a simpler situation: form.MyProperty = 8 followed by form.MyProperty = 9 which produces no error because we’re just changing the contents of a property.

But, each time the popup menu is instantiated, it is a new menu object that is instantiated. Furthermore, even though we are not providing a name for each new menu, each one is receiving a name “behind the scenes”. As is the case for most objects placed on a form, if you do not provide a name for the object, dBASE will provide one. In this case, the first popup menu that we create is given the name “POPUP” by dBASE, the second is named “POPUP1”, the third is named  “POPUP2”, etc.

You might wonder, “Why not just release the menu at the end of the onRightMouseDown() function and re-use the name the next time around?” This is a very good question, and it has a somewhat perplexing answer: dBASE will not let us fully release the named object — we can use release object form.MyPopup and thus release the particulars of the menu and presumably the memory it occupies (and it will not be Openable again — Attempt to access released object error), but there will still be a property of the form with the name we gave to the menu. However, we are allowed to re-name this object to, say, form.oldPopup, and then re-use the original name if we wish, but the next time around we’ll have to re-name it to something other than form.oldPopup, because the first re-named object still exists with that name. So, in effect, a unique name is required for each instantiation. It’s easiest to just let dBASE do that with its internal naming system, although if for some reason you wish to provide a name, you can set up your own system for incremental naming — MyPop1, MyPop2, etc.

A sample form with a dynamic popup menu
Top|Topic List

A working example of the above menu is in the form below. There is no need for a separate .pop file since the menu is completely defined in the onRightMouseDown() event code of the listbox. Copy/paste the below file into a file called Dynapop.wfm and save/run it. Right-click the listbox to see the menu.

** END HEADER -- do not remove this line // // Generated on 07/02/2002 // parameter bModal local f f = new dynapopForm() if (bModal)    f.mdi = false  // ensure not MDI    f.readModal() else    f.open() endif class dynapopForm of FORM with (this)    onOpen = {;_app.now = form}    onClose = {;_app.now = null}    height = 13.3182    left = 49.7143    top = 4.4091    width = 32.7143    text = ""    autoCenter = true    mdi = true endwith this.RECTANGLE1 = new RECTANGLE(this) with (this.RECTANGLE1)    left = 1.1429    top = 0.5455    width = 29    height = 6.7273    text = "What to include in the Listbox popup.."    fontSize = 8 endwith this.CKBX1 = new CHECKBOX(this) with (this.CKBX1)    height = 1    left = 5.2857    top = 1.5909    width = 21.1429    text = "Include Item one"    fontSize = 8 endwith this.CKBX2 = new CHECKBOX(this) with (this.CKBX2)    height = 1    left = 5.2857    top = 2.6364    width = 21.1429    text = "Include Item two"    fontSize = 8 endwith this.CKBX3 = new CHECKBOX(this) with (this.CKBX3)    height = 1    left = 5.2857    top = 3.6818    width = 21.1429    text = "Include Item three"    fontSize = 8 endwith this.CKBX4 = new CHECKBOX(this) with (this.CKBX4)    height = 1    left = 5.2857    top = 4.7273    width = 21.1429    text = "Include Item four"    fontSize = 8 endwith this.CKBX5 = new CHECKBOX(this) with (this.CKBX5)    height = 1    left = 5.2857    top = 5.8182    width = 21.1429    text = "Include Item five"    fontSize = 8 endwith this.LB1 = new LISTBOX(this) with (this.LB1)    onRightMouseDown = class::LB1_ONRIGHTMOUSEDOWN    height = 3.9545    left = 7.5714    top = 8.7727    width = 16.8571    id = 107    fontSize = 8    dataSource = 'ARRAY {"Choice 1","Choice 2","Choice 3","Choice 4","Choice 5","Choice 6","Choice 7","Choice ","Choice 9","Choice 10"}' endwith this.CKBXNOTICE = new CHECKBOX(this) with (this.CKBXNOTICE)    height = 1    left = 5.2857    top = 7.5    width = 19.2857    text = "Notice Listbox Choice"    fontSize = 8 endwith function LB1_onRightMouseDown(flags, col, row)    // Instantiate a new popup menu directly from the POPUP class    form.popper = new Popup(form)    // Add a couple of items that will always be on the menu    form.popper.MENU1 = new MENU(form.popper)    with (form.popper.MENU1)       text = "Do a basic process that always has to be on the menu"       onClick = {;msgbox(this.parent.name+" Process that is always available")}    endwith    form.popper.MENU1 = new MENU(form.popper)    with (form.popper.MENU1)       text = "Do another basic process that always has to be on the menu"       onClick = {;msgbox("Another process that is always available")}    endwith    // Now begin a sequence of conditionally included menu items    if form.ckbx1.value       form.popper.MENU3 = new MENU(form.popper)       with (form.popper.MENU3)          text = "Do something related to checkbox 1"          onClick = {;msgbox("Process that involves first checkbox")}       endwith    endif    if form.ckbx2.value       form.popper.MENU4 = new MENU(form.popper)       with (form.popper.MENU4)          text = "Do something related to checkbox 2"          onClick = {;msgbox("Process that involves second checkbox")}       endwith    endif    if form.ckbx3.value       form.popper.MENU5 = new MENU(form.popper)       with (form.popper.MENU5)          text = "Do something related to checkbox 3"          onClick = {;msgbox("Process that involves third checkbox")}       endwith    endif    if form.ckbx4.value       form.popper.MENU6 = new MENU(form.popper)       with (form.popper.MENU6)          text = "Do something related to checkbox 4"          onClick = {;msgbox("Process that involves fourth checkbox")}       endwith    endif    if form.ckbx5.value       form.popper.MENU7 = new MENU(form.popper)       with (form.popper.MENU7)          text = "Do something related to checkbox 5"          onClick = {;msgbox("Process that involves fifth checkbox")}       endwith    endif    if form.ckbxnotice.value       form.popper.MENU8 = new MENU(form.popper)       with (form.popper.MENU8)          // the current choice in the ListBox          text = "You chose " + this.value          onClick = {;msgbox("Process that involves " + this.value)}       endwith    endif    // set alignment and menu position    form.popper.alignment = 1   // emerge out of left corner of menu    form.popper.left = this.left + col    form.popper.top = this.top + row     form.popper.Open()    // release the menu--doesn't seem to be necesesary, but why not?    release object form.popper    return endclass

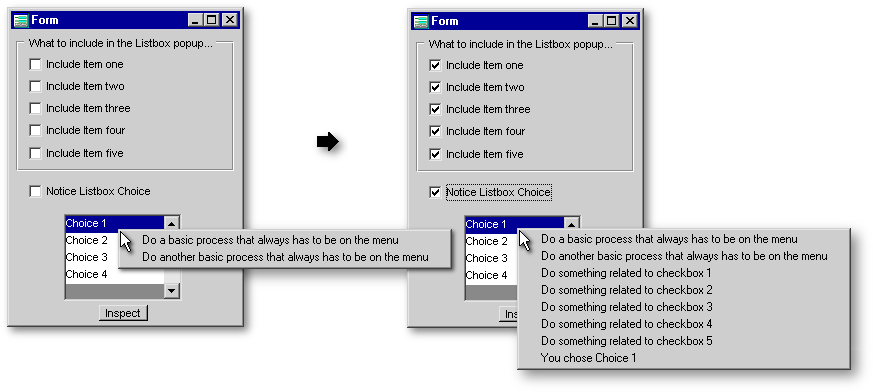

Below are two shots of the form and popup menu: at left, when none of the checkboxes are checked; and at right, when all of the checkboxes are checked.

2 in 1: A form-based popup and a grid-based popup in one form
Top|Topic List

Remember the very first form described in this article, the one with the simple popup menu instantiated into the built-in property called form.popupMenu? What if you also want an object-specific popup in such a form? Or perhaps 2 or 3 object-specific popups?

This is a bit trickier to accomplish than it may seem at first glance. The problem is this: the standard form-based popup instantiated into form.popupMenu will be invoked anywhere on the form, even over objects such as grids and listboxes with their own popups. Furthermore, dBASE is constructed such that the form’s popup “event” takes precedence over the onRightMouseDown() event of any object on the form. This leads to some bizarre behavior: right-click the grid and get the form’s popup; then, after releasing it, the grid’s popup appears. Obviously, this is not what we want.

A while back, Gary White provided a nice example of how to get around this problem, and it is very simple. The solution is to not use the built-in form.popupMenu property. Instead, instantiate the form’s popup into a custom form property with a different name (anything other than form.popupMenu will do), and then write the usual few lines of code to position and open it in the form’s onRightMouseDown() event. This event respects the onRightMouseDown() of objects on the form and so doesn’t fire when the mouse is right-clicked over form objects.

Below is DemoAlign.wfm, a form to show how a “form-based” popup can comfortably coexist with an object-specific popup. This form does additional duty as a demo of the three alignment options for popup menus and also shows you (in a reversible way) the strange behavior of the two popups when the form’s popup is assigned to form.popupMenu.

The form is shown below:

NewsGroup Tips for managing the placement of object-specific popup menus when the object is in one or more containers
Top|Topic List

When the programmer wishes to associate a popup menu with a grid or other control that is contained in either a Notebook object and/or 1 or more (nested) Container objects, correct placement of the popup menu in relation to the mouse pointer becomes trickier. In fact, there is in this regard even a dBASE behavior which has been reported as a bug, although it is usually quite minor. In dealing with the challenges of precise menu placement under these circumstances, I have received some very useful and clever help from Marko Mihorko, Jamie Grant, and Marc Van den Berghen, all from the dBASE Programming NewsGroup.

There are two problems. The first is an extension of an issue we have already looked at — the necessity of accounting for the separate coordinate systems of the form and the object that we are right-clicking in order to place the menu precisely where we wish. As an example, see the form below which has a grid within a Notebook:

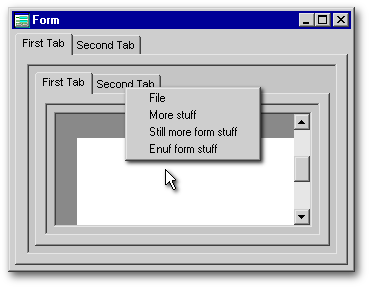

The above popup menu, whose upper left-hand corner is supposed to align with the tip of the mouse pointer, is clearly not being properly placed.

Following is its placement code:

	Function GRID1_onRightMouseDown(flags, col, row)    form.gridpop.alignment = 1    form.gridpop.left = this.left + col    form.gridpop.top = this.top + row    form.gridpop.open()     return

As you can see, the code accounts for the grid’s position (but in relation to what?!) and the position of the mouse pointer within the grid, but as Marko Mihorko correctly pointed out, does not account for the position of the Notebook in the form. In fact, the grid’s position (this.left and this.top) is in relation to the Notebook which contains it, rather than in relation to the form. So, modifying the above code to account for the Notebook as follows…

	Function GRID1_onRightMouseDown(flags, col, row)    form.gridpop.alignment = 1    form.gridpop.left= form.notebook1.left + this.left + col    form.gridpop.top = form.notebook1.top + this.top + row    form.gridpop.open()     return

…fixes most of the placement problem:

As it turns out, an elegant procedure called doPopup() for managing this problem has already been authored by Jamie A. Grant, AV-Base Systems, Inc., and has been graciously provided for use in this article.

Instead of coding the usual menu placement in the onRightMouseDown() event code of the object that is being right-clicked, a call to the doPopup() procedure is placed there instead. The procedure is shown below:

Procedure doPopup(form, currentObj, popupVar, mouseCol, mouseRow)    // Example:    // Function GRID1_onRightMouseDown(flags, col, row)    //    DoPopup( form, form.notebook1.container1.grid1, form.grid1Popup, col, row )    // return    firstObj = currentObj    popupVar.top = mouseRow     popupVar.left = mouseCol    do while not currentObj == form        popupVar.top = popupVar.top + currentObj.top        popupVar.left = popupVar.left + currentObj.left        currentObj = currentObj.parent     enddo     currentObj = firstObj    // Ensure it loads left-aligned to the starting point.     if popupVar.alignment <> 1        popupVar.alignment := 1     endif     popupVar.trackRight := false    popupVar.open()

This function receives several parameters:

• the form
• a reference to the object that is being right-clicked
• a reference to the popup menu to be opened
• and the col and row values passed by the right-clicked object’s onRightMouseDown() event to the event code.

The procedure thus begins by storing the values of row and col to the popup menu’s top and left properties (popupVar.top and popupVar.left). It then adds the right-clicked object’s positional data to the popup menu’s top and left values. It then enters a loop which exploits the parent property of the current object to move “focus” to the object’s parent (its container), and then adds its top and left values to the totals. The loop continues up the parental hierarchy for as many parent “container” objects as exist and stops when it reaches the form itself. So, in essence, it is merely adding the mouse pointer’s row value to all the tops from the clicked object up the container hierarchy to the form and adding the mouse pointer’s col value to all the lefts from the clicked object up the container hierarchy to the form.

To test the doPopup() procedure, I devised the somewhat unrealistic but challenging example of popup menu placement mentioned in the Note above: a grid within a Container within a Notebook within a Container within a Notebook. With only the original code (grid position and mouse pointer position) to define grid and pointer placement, the mouse pointer is initially placed far away from the menu:

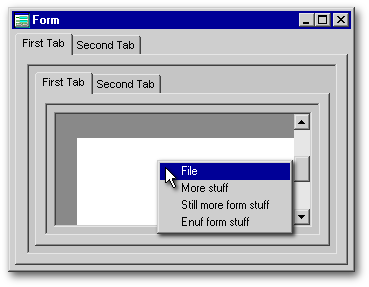

But by using Jamie’s doPopup() procedure instead of the basic code, here is the result:

As you can see, the corner of the menu is placed much closer to the tip of the pointer. The code is below. Although Jamie apparently uses the procedure as part of a .prg file, I have placed it below as a custom method of the form (i.e., it is within the Class/Endclass of the form rather than outside it), so it is called below as form.doPopup (etc.):

Function GRID1_onRightMouseDown(flags, col, row)    form.DoPopup( form, form.notebook1.container1.notebook1.container1.grid1, form.gridPop, col, row )     return Procedure doPopup(form, currentObj, popupVar, mouseCol, mouseRow)    // Example:    // Function GRID1_onRightMouseDown(flags, col, row)    //   DoPopup( form, form.notebook1.container1.grid1, form.grid1Popup, col, row )    // return    firstObj = currentObj    popupVar.top = mouseRow    popupVar.left = mouseCol    do while not currentObj == form       popupVar.top = popupVar.top + currentObj.top       popupVar.left = popupVar.left + currentObj.left       currentObj = currentObj.parent    enddo    currentObj = firstObj    // Ensure it loads left-aligned to the starting point.    if popupVar.alignment <> 1       popupVar.alignment := 1    endif    popupVar.trackRight := false    popupVar.open()

That pesky mouse pointer again!

In the screenshot above, you may have noticed that the tip of the mouse pointer is still slightly displaced to the right and down from the upper left corner of the menu. Why has this occurred? There are no flaws in Jamie’s code. It is instead related to a minor glitch (or perhaps a purposeful omission) in dBASE — a failure to account for the thickness of the border of objects such as containers, grids, and listboxes when reporting theirleftand top values. A couple of additional examples are shown below to illustrate the extremes.

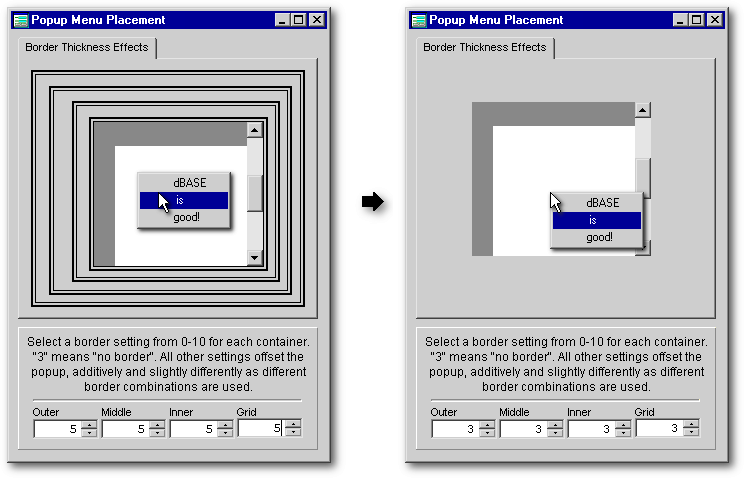

On the left, three nested containers and a grid with borders of maximum thickness; and on the right, those same containers and grid with no borders. Both forms use Jamie’s custom procedure to position the popup menu in relation to the mouse pointer.

The difference in placement of the popup menu is evident: when the menu pops up within 4 double-thick borders, even Jamie’s procedure cannot overcome the menu’s substantial offset from its proper position; but when there are no borders present, the placement becomes perfect. You may never use three nested containers with a grid and its popup menu located in the deepest level, but you will run into this issue to some degree with any number of nested objects if they have borders. Then again, you may not care about this relatively minor problem! Your users would probably not even notice it.

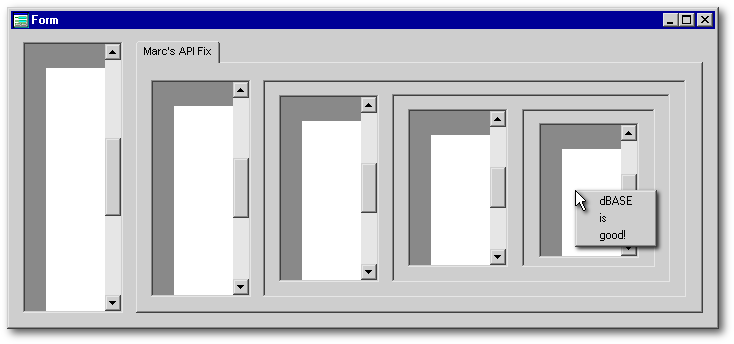

Still, as with most problems associated with dBASE, there is a fix for the border problem. It comes from Marc Van den Berghen, who is one of the more imaginative and skilled adventurers into the land of API calls. He has used a custom class written by Gary White (a long-time first-rate API’er) which provides a means to extract data returned by API calls, and has used it to exploit two API functions: GetCursorPos() and ScreenToClient(). The concept is straightforward: GetCursorPos() returns the coordinates of the mouse pointer in relation to the entire screen, and ScreenToClient()translates the latter coordinates to those of the current window, i.e., the form. Since the popup menu’s coordinates use the form’s coordinate system, and we have the precise position of the pointer on the form, we can set the menu’s upper left corner to the same coordinates as the tip of the mouse pointer and thus bring them together.

This approach also solves the previous problem of having to make adjustments for multiple left and top offsets, so if you use it, you won't need to use Jamie’s doPopup() procedure. Below is an example of a form that shows both positioning problems being solved at once — the popup is located several “offsets” deep and is within three thick container borders and a grid border, yet it is precisely aligned with the tip of the mouse pointer:

Only the grid’s onMouseDown() event code is shown below, but the above form has been included with the others that accompany this article so you can explore the rest of the code in dBASE’s Editor:

Function GRID1_onRightMouseDown4(flags, col, row)    Form.NBPopUp.alignment = 1    // Instantiate a new instance of the POINT class    // which will provide access to the data returned     // by the API functions    p = new POINT()    // Get the coordinates of the mouse pointer    // in relation to the screen's coordinate system    GetCursorPos(p)    // Convert them to the form's coordinate system    ScreenToClient(form.hwnd, p)    // Set the popup menu's .left and .top properties    with(form.Popup1)       left := p.getX()       top := p.getY()    endwith    // Open the popup menu    Form.Popup1.open()    // Release the p object    p.release()    return

You are now at the cutting edge of research regarding popup menu placement in relation to the mouse pointer, and the methods described above should handle almost any menu circumstance.

dBASE’s built-in popups
Top|Topic List

To wrap up this article, let’s take a quick look at a couple of dBASE’s built-in popup menus.

The Form’s useTablePopup Property

Drop a grid and a query on a form without a form-based popup, and datalink the grid to the query. Then, in the Form Designer, set form.useTablePopup to true

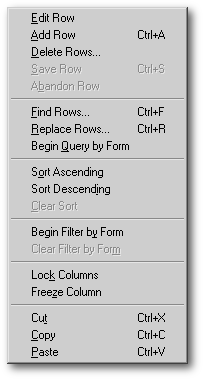

…and run the form. Then right-click anywhere on the form and voilà…

I’m embarrassed to admit that I was unaware of the existence of this popup until preparing this article. I’m not sure I will ever use it in a real app, but it’s a handy-dandy little tool. Be sure to try out the Sort commands — it even offers to create new indexes for you!

If you do not have a query on the form, but do have entryfields or other editable controls, most of the choices on the popup are grayed out, but the usual editing choices (Copy|Cut|Paste) are available as appropriate.

How does the form’s UseTablePopup property interact with an object-specific popup? I leave it to you to do the research.

The Editor object’s popEnable Property

The Editor object has a built-in popup that provides useful editing functions. It is shown below.

Set the editor’s popupEnabled property to false if you prefer that this popup not appear when the editor is right-clicked. The property defaults to true.

	Incidentally, the bottom choice in the popup, Show Format Toolbar, refers to a tool bar that provides additional editing options for the Editor. This toolbar has been known to “pop up” unexpectedly (and somewhat annoyingly) in compiled applications. There are a couple of ways to turn it off:  The form has a method called showFormatBar(), and you can turn off the bar via form.showFormatBar(false) or use form.showFormatBar(true) if you wish to turn it on. Include this entry in the application’s ini file:   [Toolbars] Format=0     Or set Format=1 if you wish to have the Format Toolbar enabled. The options on this popup menu can only be enabled when it is used with an MDI form; if the form is SDI, the options remain grayed out.

Conclusion
Top|Topic List

If you have managed to stick with this lengthy article long enough to read this conclusion, I hope you now see that popups are not so hard to create and they make your apps more friendly and efficient. Use ’em!
